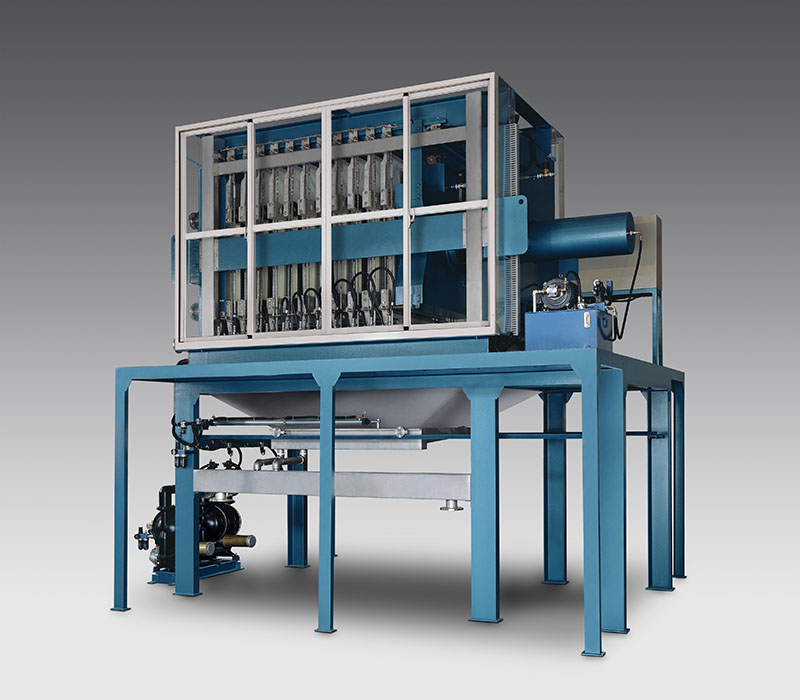

The moving cloth type filter press is an advanced filter press system. It is a highly efficient, compact dewatering device for solid-liquid separation. Its major components are a structured framework, filter chambers (formed by the recessed plate system or plate-and-frame system), and filter cloth.
Although filter press technology is simple in principle, it plays an essential role in many industrial processes. Filter presses are separation devices used for solid or liquid separation that work on feed pressure or squeeze pressure to reduce liquid content in process or waste slurries or to reduce solid content in a product.

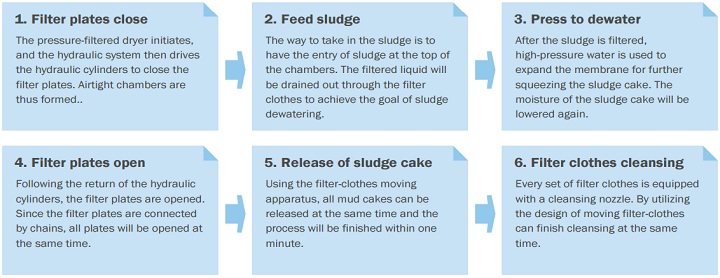

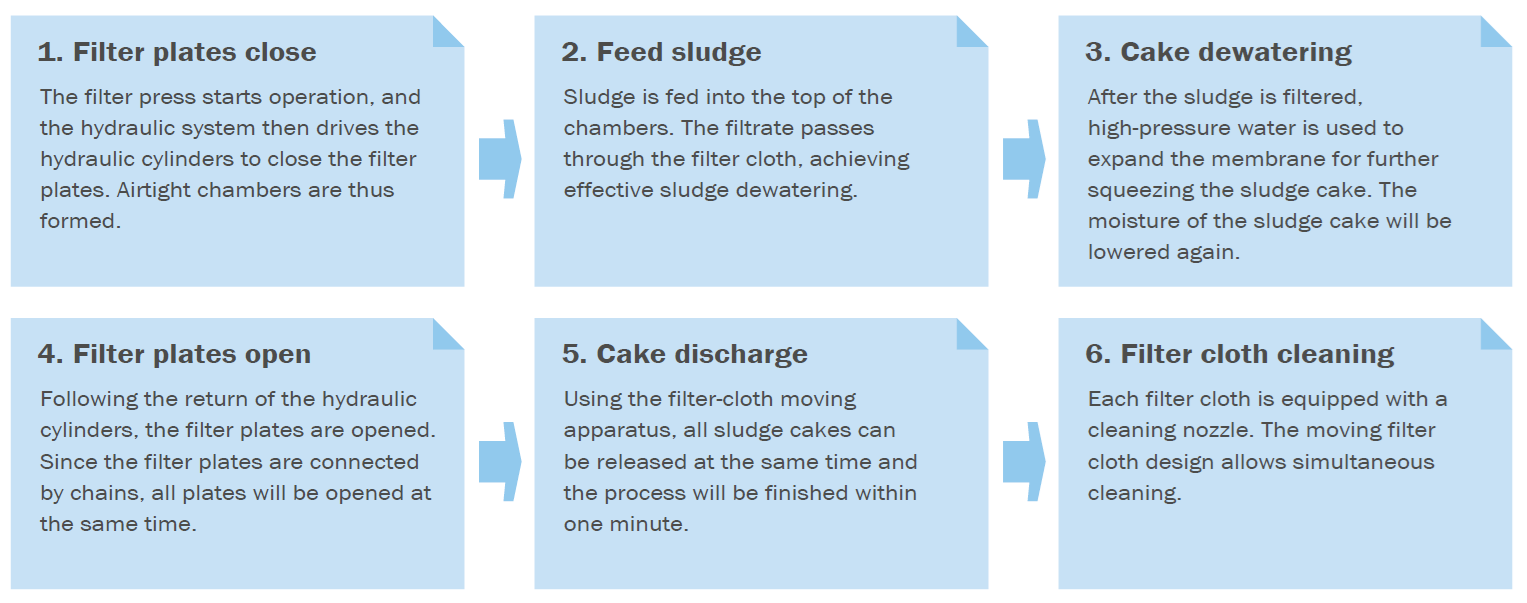

1. Complete automatic operation
   From the initiation, dewatering, and cleaning filter cloth to the Cake Discharge, all the above operate automatically. Batch operation and operating schedules can be set daily. The entire process is fully automatic. The filter press is suitable for 24-hour continuous operation.
2. Efficient dewatering to high cake dryness

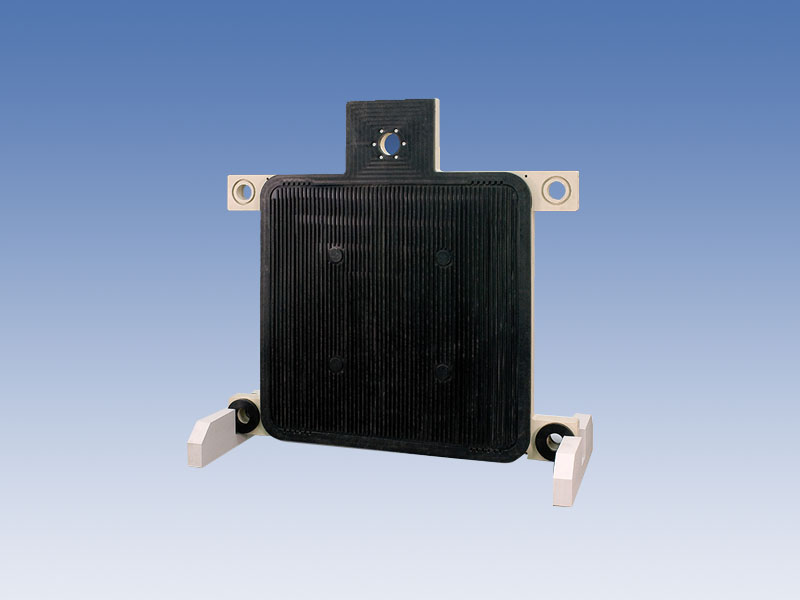

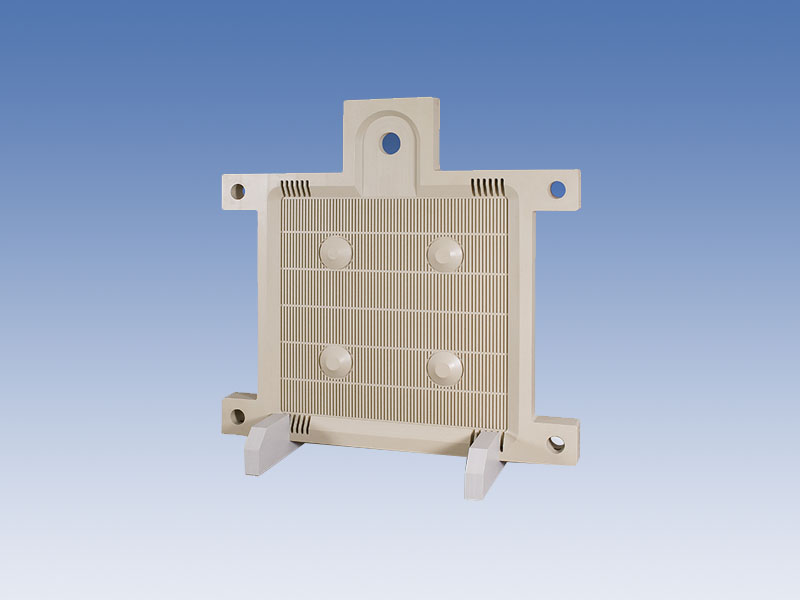

   By feeding sludge at the top of the filter plates, a uniform distribution of incoming sludge can be achieved. Each filter plate is equipped with a high-tension membrane. By applying uniform squeezing of the membrane, the sludge cake will achieve high cake dryness at the shortest period of time.
3. Complete sludge cake discharge

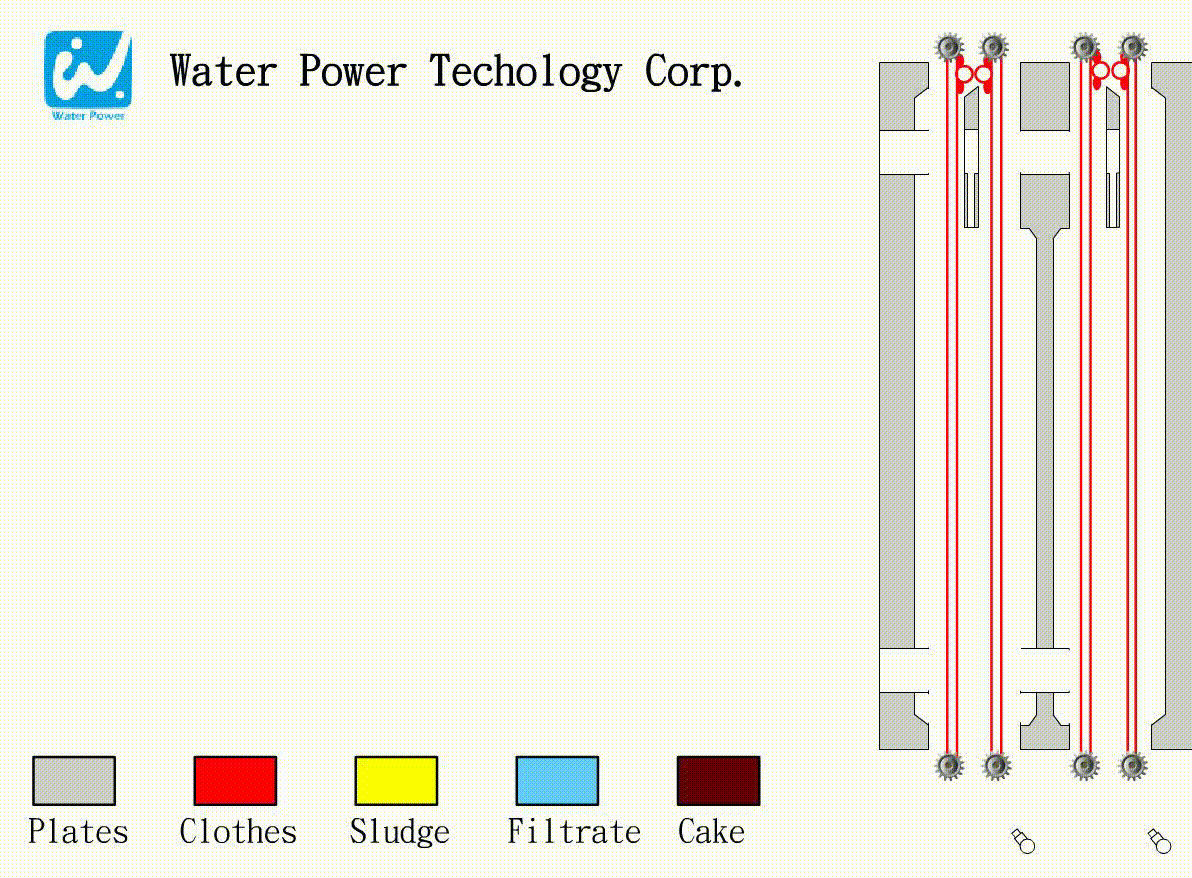

   Because of the filter-cloth moving design, even the sludge cake that is difficult to be released can be automatically removed during cloth movement.
4. Fast cleaning of filter cloth
   Automatic cloth washing completes within 1 minute.
5. High-Capacity Sludge Treatment
   Since there is a drastic reduction of time needed for dewatering, sludge release and filter cloth cleaning, the capacity of the filter press increases greatly. In other words, by utilizing a smaller filter press, a targeted amount can be promptly treated. Therefore, it will save the factory space and the area for facilities.
